PTZ Camera Features:

* Mini size: 4 inch,
* 1/3" Sony Color CCD,
* ZOOM:  3 X Optical ZOOM,
* TV Line: 700TVL Resolution,
* Pan range: 360 degree Continue Rotation.

PTZ Camera Specifications:

* PTZ Dome
* Protocol: Pelco-P/D
* Baud rate: 1200/2400/4800/9600 bps(By default, we ship the 2400bps)
* Address: 0-255
* Pan Rotation: 360 degree Continues Rotation
* Tilt Rotation: 0 ~ 90 degree
* Max Pan Speed: 60 degree/Sec
* Max Tilt Speed: 30 degree/Sec
* Preset speed: 100 degree/Sec
* Preset accuracy: ±3 degree
* Preset points: 32 Points
* Pattern Tours: Programmable 16 preset point
* Programmable preset number and dwell time/speed
* Auto Scan: Yes( Programmable speed and left right limited point)
* Power-off memory: Current setting and state( include pattern, not include auto scan)
* Home position: Yes( Programmable auto come back home position)
* Zoom: Optical 3 X (4-9mm)
* Water Protection: IP66 for Outdoor use( Wall Mount)
* Power: 12V DC 500mA
* Communication: RS485(+/-)

PTZ Camera Package:
* 1/3 SONY 700TVL 4 Inch 3 Optical ZOOM PTZ Dome Camera
* Mount (Wall Mount, Ceiling Mount)
* PTC-101 Wireless remote Controller
* Warranty: 3 Months
Band
Rs.24,500/-

Laptop
AV Inputs
Internet network
Up
Next
Wedding Live
Janmashtami Live
Event Live
Dandiya Live
Wedding
Dandiya
Govinda
Live Events
Bunny
Buy
Live TV
Live Video Streaming Solutions by Ashok Electronics.
11, Tinwala building, Tribhuvan road, Mumbai 400004, India.
Tel: +91-22-23886287, Mob: +91-98200 40240
Email:  ashelec@vsnl.com
Site: http://www.ashokelectronics.in/



Specifications, rates and models are subject to change without notice.
Ashok Electronics
Please read the Terms and Conditions before placing orders.
Tips: Test your Internet Upload and download speeds at http://www.speedtest.net
Check the IP of you Internet Service Provider and also check for Open and Closed Ports at
http://www.yougetsignal.com.




VideoMax USB Webcaster
VideoMax Backside
Live Video/Audio Input
We can create your account on Ustream.tv, so that your FREE channel link is http://www.ustream.tv/channel/yourchannelname,
We canl also put your channel link on our website, FREE, so that anyone who visits our website also visits your channel link.
We can also design customised Streaming Web Page for you, if you already have a website. You can just upload it to your website.  Rs.4,700/-
In case you do not have website, we can design complete website, including domain name, web space and designing of streaming web page . . .Rs.9,200/-
Livestream
Dacast
primcast
Streaming Video Provider
Ustream
Justin TV
Ashok Electronics
Your Own WebSite
or CDN Servers.
Output to
Unlimited Users
Man with camera
Live webcast

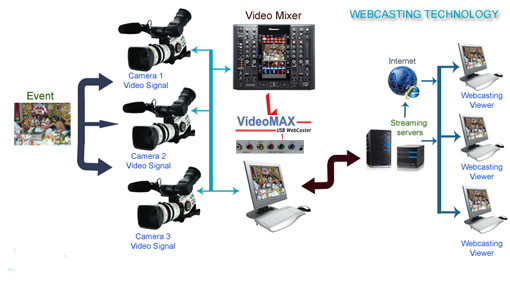

Webcasting Technology
Live Webcast
New SM
Next
Laptop/PC
To USB
Sony  CCD mini 4 inch 3x Zoom PTZ Camera 360 Degree Pan Tile with Wireless Remote Controller

PTZ Camera
Up
PTZ Camera with
Wireless Remote Controller
Suitable for :
* Temples,  * Corporates,  * Big Companies,  * Hospitals and Clinics,  * Operations and Surgeries, *  Share Bazaar,  *  Cricket and other Sports,  *  News and Cable Channels,  *  Video Conferencing, and any other event which is to be covered LIVE !!

PTZ Camera
VideoMax USB Webcaster
Multi Dongles
Connectify
Up
Add bandwiths from
Multiple 3G Dongles.
Optional
FREE: Once you purchase VideoMAX USB WebCaster,
if you wish, we can create your account on Ustream CDN Server, Free AC.
          Lets say, we create the account with user name: rajeshcable.
          When you connect AV Source to VideoMAX USB WebCaster,
LIVE AV will go to:
http://www.ustream.tv/channel/rajeshcable
You can give the above link to your clients, to view your Live Channel !!
Thats all !.
PTX Camera
PTZ Camera backside

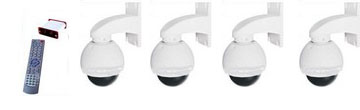

Multi Camera Setup with Wireless Remote Controller
Up
FREE: Wireless
Remote Controller!

Limited Time Offer.
Live Event Webcasting / Streaming Examples :

Organizational / Entertainment
- Music Concerts
- Religious Pujas / Ceremonies
- Sporting Events
- Press Conferences
- Red Carpet Premieres
- TV/Radio Shows

Personal / Social Events
- Sermons and Oratory
- Weddings / Marriages (WEDcast)
- Birthday Parties
- Family Occasions
- Reunions

Education and Instruction
- Training and Coaching
- Online Instruction
- Web Based Distance Learning

Events Business and Industry
- Conferences
- Seminars
- Presentations
- Commercial Events

Corporate Live Webcast
- AGM
- Investor Meets
- Product Launches
- Advertising
- Corporate Addresses
- Lectures
- Corporate Announcements
- Professional Development & Training Tutorials
- Other Corporate Live Events

(Optional Rs.9,900/- extra)
VMS Encoder
News Live
Laptop
AV Outs
OR
OR
shape
Standalon Player,
No PC Required.
On Laptop
On Desktop PC
(Optional Rs.3,300/-
to Rs.35,000/- extra)
Arrow
Watch LIVE Demo

Watch Demo of LIVE Video at Ustream

Watch Demo of LIVE Video at Livestream


PTZ
Video Camera
Multi Input
Video IN
Please Note: Though VideoMAX USB WebCaster supports many third party software’s like Xsplit, etc., You are welcome to try them. We do not support/provide training for these software’s.
You can get more details and  in formations about them on youtube.com or contact the respective companies.
